Clone MiniProg4

MiniProg4

PSoC Creator不支持JLink，真是可惜！官方的MiniProg4相当mini精巧，可惜价格高昂，接口又很不友好，Infineon的Github上有KitProg3的开源代码，除了实现了DAPLink的功能，还有USB转IIC、SPI等外扩功能，于是就借助于它开始拼凑我的MiniProg4！

参考文档：

KitProg3：github.com/infineon/kitprog3

Infineon-AN84858_PSoC4_Programming xxx

Infineon-KitProg_Host_Protocol_Interface-UserManual

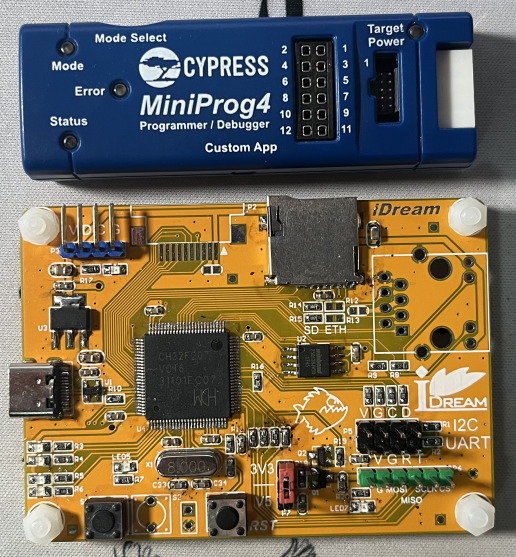

MCU就选择之前申请的CH32V307/CH32F207剩余的样片吧，高速USB，性能不弱接口丰富，加上个TFT和SD、SPI Flash还可以实现离线烧录功能，PCB在上次307的基础上简单修改了下就完成了。

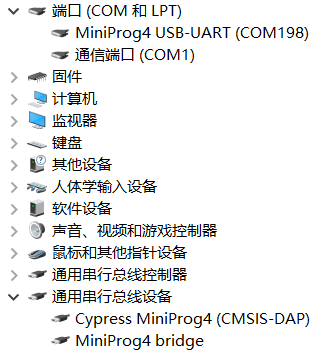

首先实现设备的枚举：在CH32F207 HS USB CDC的例程上，按照MiniProg4的设备描述符上传所需的字符串即可。一番修改终于实现了：

HID接口的DAP我不需要，直接删掉，只保留了WINUSB的DAP、Bridge和虚拟串口，设备枚举成功后，算是迈出了第一步，接下来就开始APP的移植操作。

又一番操作后，终于可以在PSoC Programmer中下载程序了，通过IO控制对外电源的输出，实现了Power Cycle，对于未接XRES并且将SWD接口配置为GPIO的4014，使用Power Cycle模式也可以下载了，好开心~

剩下的就是USB 2 IIC、SPI的移植了，日后再搞。

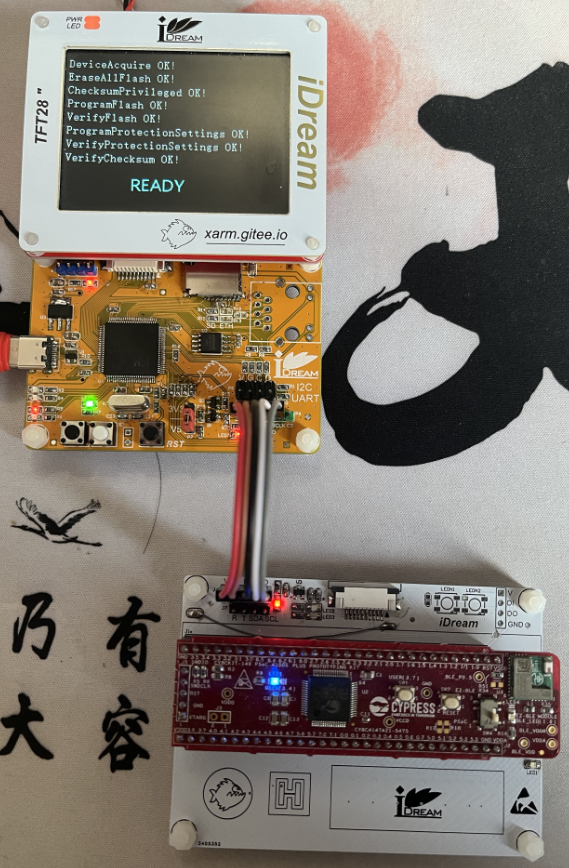

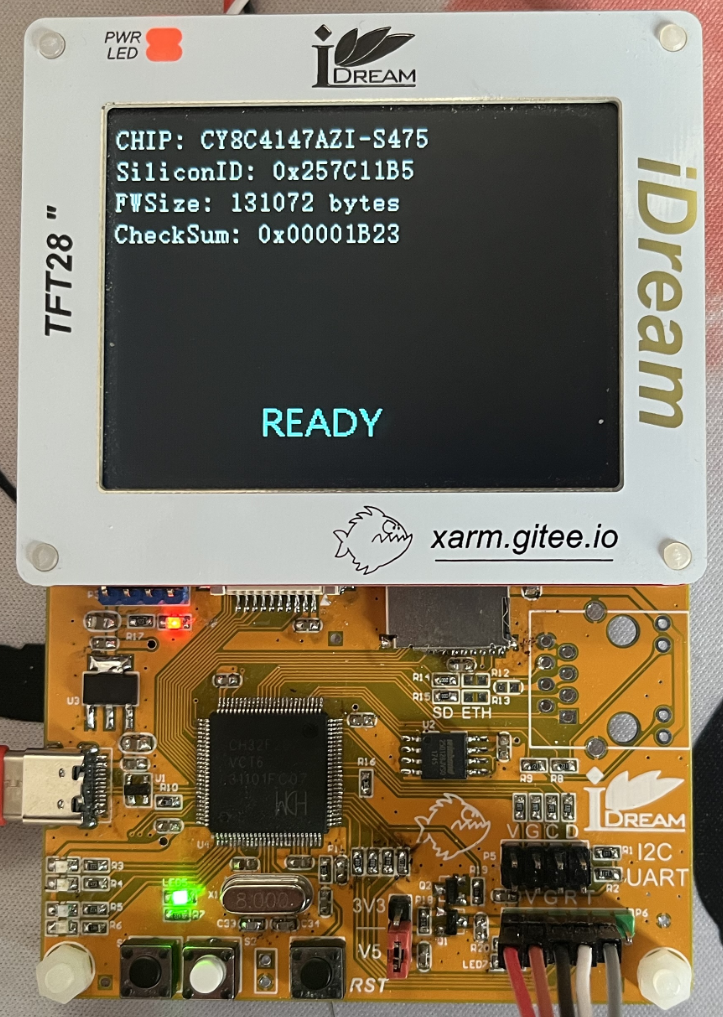

补一个离线下载：（目前在线和离线都已支持）

参考AN84858，将HSSP代码添加进工程中，稍作修改即可。

目前CH32的SDIO还有bug，每次上电首次初始化sdio会卡死，复位一下即可重新运行。

TODO List：

1. USB Bridge to IIC。
2. USB MSC 及bootloader。

附 - 官方MiniProg4的设备描述符：（欢迎一起交流）

Device Descriptor:
bcdUSB:             0x0200
bDeviceClass:         0xEF
bDeviceSubClass:      0x02
bDeviceProtocol:      0x01
bMaxPacketSize0:      0x08 (8)
idVendor:           0x04B4 (Cypress Semiconductor)
idProduct:          0xF151
bcdDevice:          0x0101
iManufacturer:        0x01
0x0409: "Cypress Semiconductor"
iProduct:             0x09
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
iSerialNumber:        0x80
0x0409: "0E23018800121400"
bNumConfigurations:   0x01

ConnectionStatus: DeviceConnected
Current Config Value: 0x01
Device Bus Speed:     Full
Device Address:       0x14
Open Pipes:              7

Endpoint Descriptor:
bEndpointAddress:     0x01  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x82  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x86  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x07  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x83  IN
Transfer Type:   Interrupt
wMaxPacketSize:     0x0008 (8)
bInterval:            0x02

Endpoint Descriptor:
bEndpointAddress:     0x84  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x05  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Configuration Descriptor:
wTotalLength:       0x0079
bNumInterfaces:       0x04
bConfigurationValue:  0x01
iConfiguration:       0x09
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
bmAttributes:         0x80 (Bus Powered )
MaxPower:             0xC8 (400 Ma)

Interface Descriptor:
bInterfaceNumber:     0x00
bAlternateSetting:    0x00
bNumEndpoints:        0x02
bInterfaceClass:      0xFF
bInterfaceSubClass:   0x00
bInterfaceProtocol:   0x00
iInterface:           0x09
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"
0x0409: "Cypress MiniProg4 (CMSIS-DAP)"

Endpoint Descriptor:
bEndpointAddress:     0x01  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x82  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Interface Descriptor:
bInterfaceNumber:     0x01
bAlternateSetting:    0x00
bNumEndpoints:        0x02
bInterfaceClass:      0xFF
bInterfaceSubClass:   0x00
bInterfaceProtocol:   0x00
iInterface:           0x11
0x0409: "MiniProg4 bridge"

Endpoint Descriptor:
bEndpointAddress:     0x86  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x07  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Unknown Descriptor:
bDescriptorType:      0x0B
bLength:              0x08
08 0B 02 02 02 02 00 00

Interface Descriptor:
bInterfaceNumber:     0x02
bAlternateSetting:    0x00
bNumEndpoints:        0x01
bInterfaceClass:      0x02
bInterfaceSubClass:   0x02
bInterfaceProtocol:   0x01
iInterface:           0x0F
0x0409: "KitProg3 USBUART"

Unknown Descriptor:
bDescriptorType:      0x24
bLength:              0x05
05 24 00 10 01

Unknown Descriptor:
bDescriptorType:      0x24
bLength:              0x04
04 24 02 02

Unknown Descriptor:
bDescriptorType:      0x24
bLength:              0x05
05 24 06 02 03

Unknown Descriptor:
bDescriptorType:      0x24
bLength:              0x05
05 24 01 00 03

Endpoint Descriptor:
bEndpointAddress:     0x83  IN
Transfer Type:   Interrupt
wMaxPacketSize:     0x0008 (8)
bInterval:            0x02

Interface Descriptor:
bInterfaceNumber:     0x03
bAlternateSetting:    0x00
bNumEndpoints:        0x02
bInterfaceClass:      0x0A
bInterfaceSubClass:   0x00
bInterfaceProtocol:   0x00
iInterface:           0x04
0x0409: "KitProg3 USBUART"

Endpoint Descriptor:
bEndpointAddress:     0x84  IN
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00

Endpoint Descriptor:
bEndpointAddress:     0x05  OUT
Transfer Type:        Bulk
wMaxPacketSize:     0x0040 (64)
bInterval:            0x00
